Nucular controller 24f with Display

• This is a Nucular 24f filled with compound for IP67 water protection and better cooling. PWM IO/PAS connector wires are extended outside of the controller body.

Maximum power: 27kW

Nominal power: 10kW

Voltage range: 30-92V

Phase current, max: 500A

Battery current, max: 350A

Supply out: 12V, 3A

Operating temperature range: -30°C to 80°C

Phase wires: 7AWG terminals M6

Battery wires: 8AWG terminals M6

Hall connectors: Auto waterproof 6P

Wires length: 190 mm

Control modes: Square, sensorless, FOC, charger

Protection: Temperature and hardware overcurrent protection

Sleep current less: <300uA

Protection class: IP67

Size, without wires: 85х42х170 mm

Weight: 1450g

Package includes:

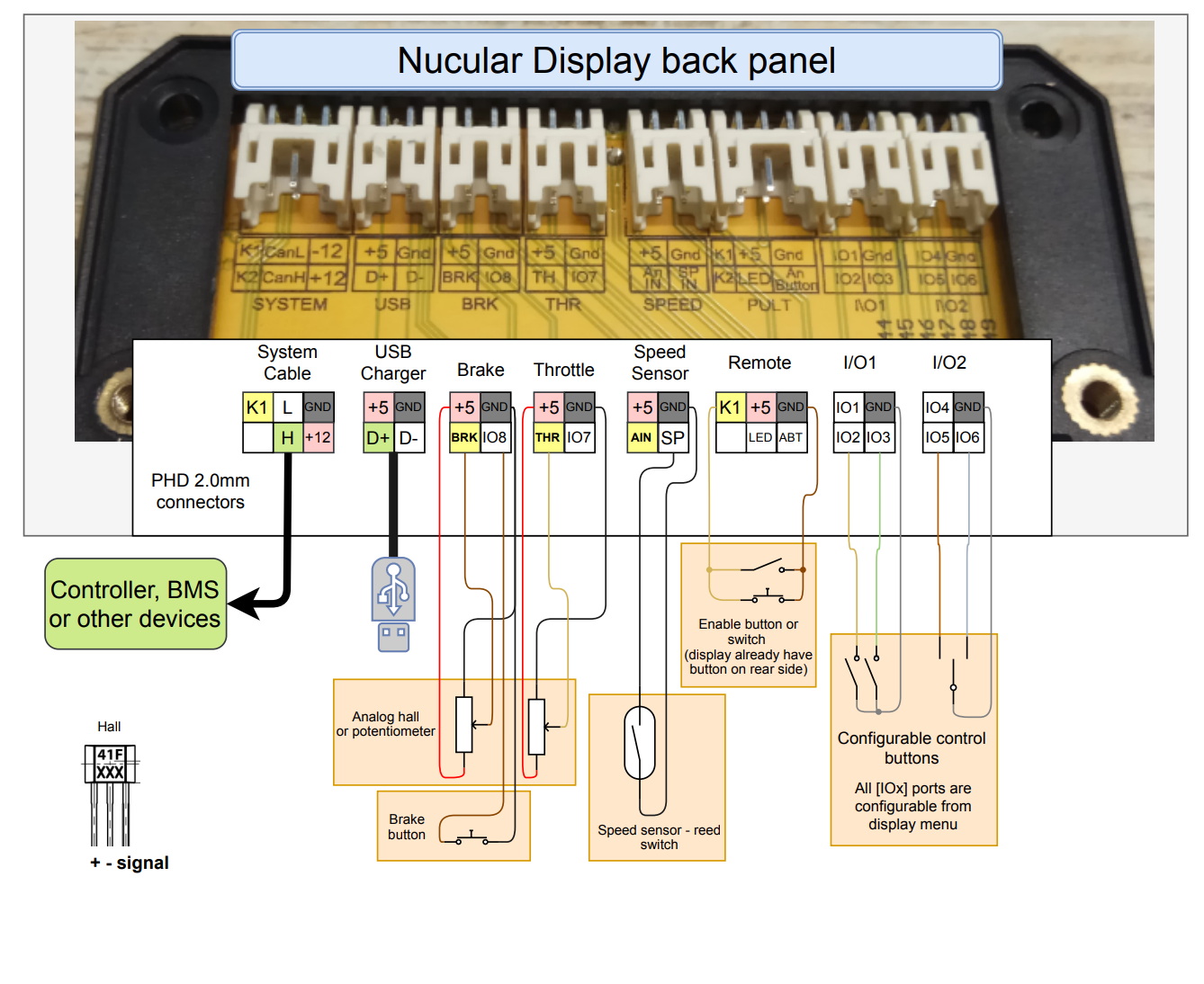

• On-board computer
• CAN-cable 1,2-meters length for connection to the On-board Computer
• Phase wires
• Battery wires
• Hall sensors wire
• PWM/PAS wire for connection PAS, fans for cooling or brake lights

Read more about on-board computer.
