Ebike Frame

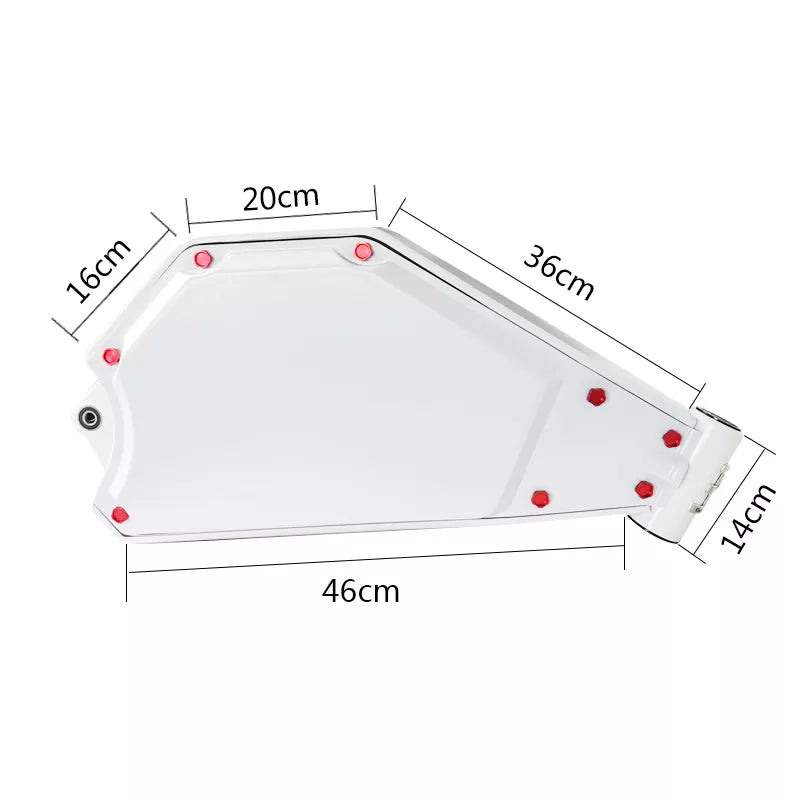

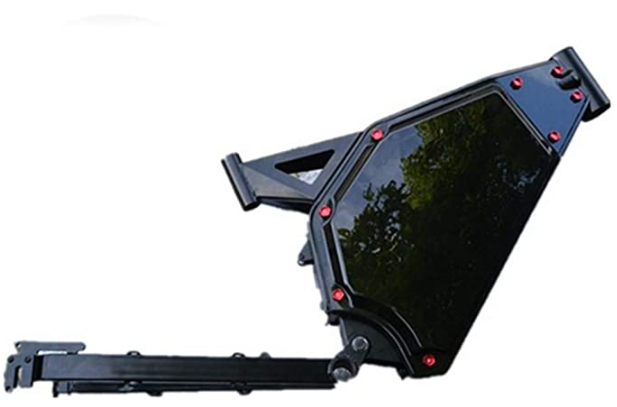

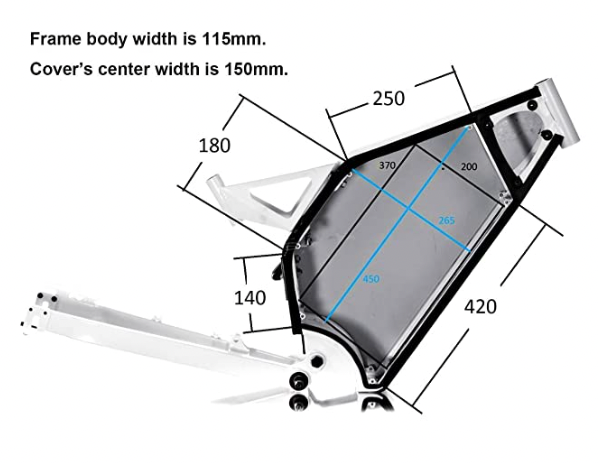

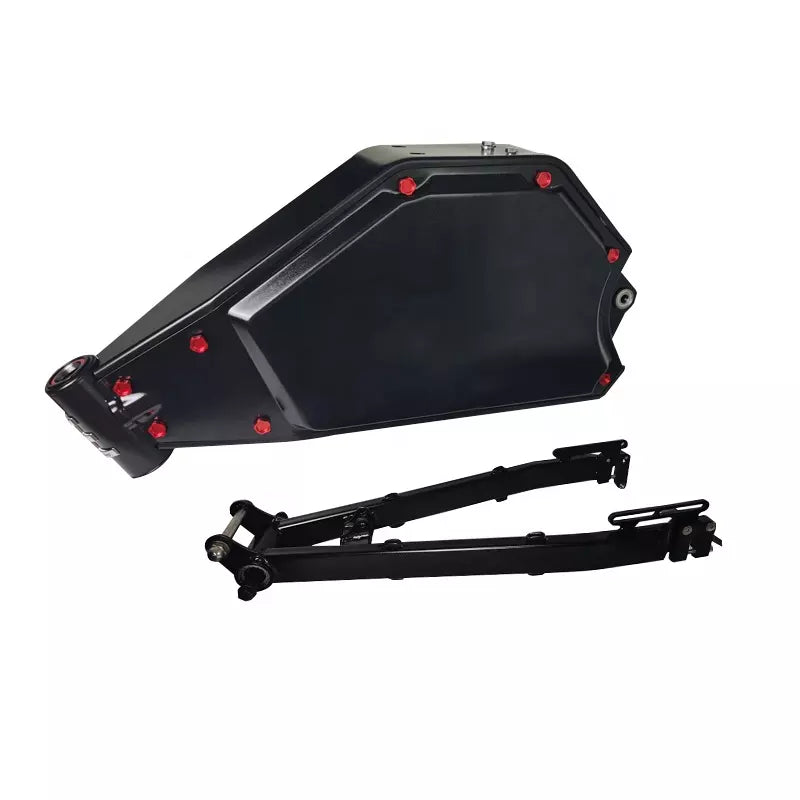

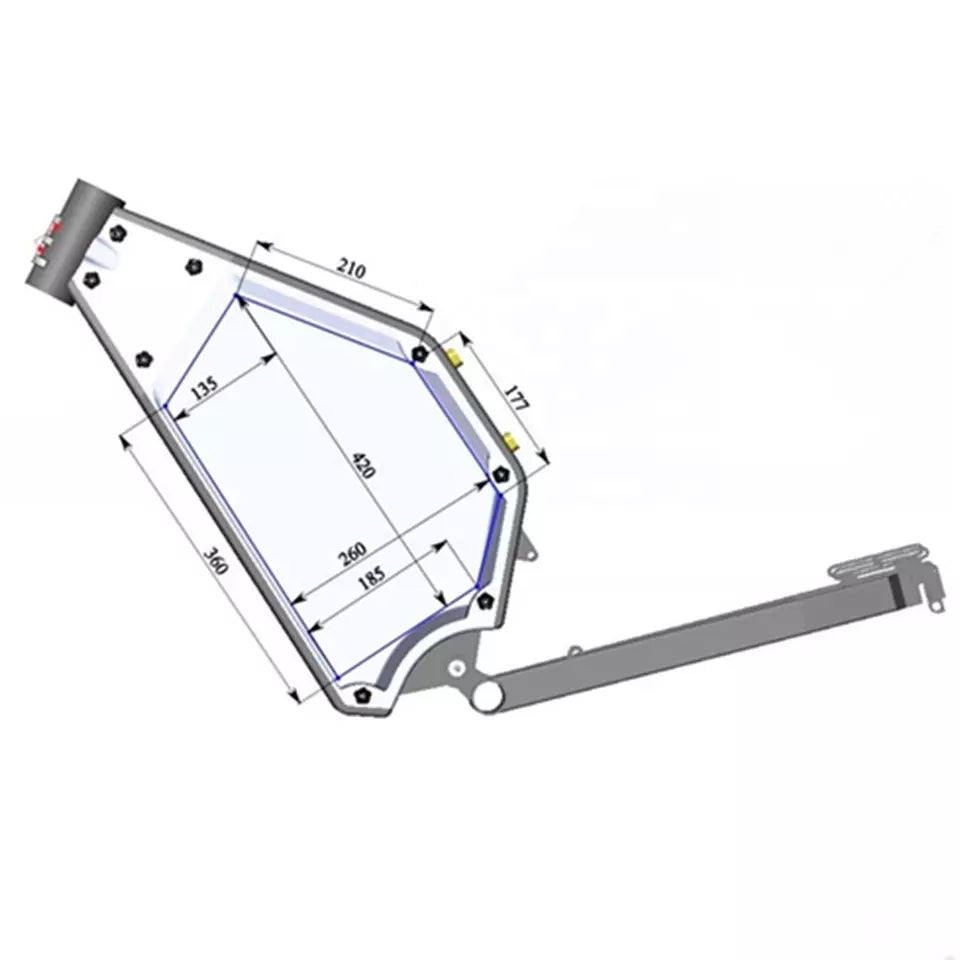

This Ebike Frame is built for strength and performance, featuring a quality square tube metal construction with durable plastic covers. It’s designed to handle 17kW with the QS205 motor on the swing arm, ensuring reliable performance.

Key Features:

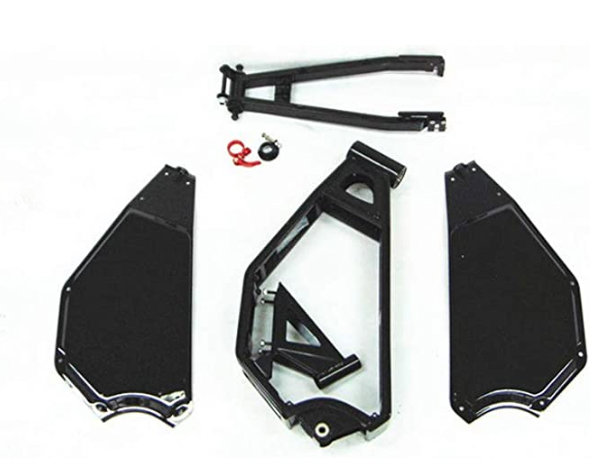

• Material: Made from sturdy steel for durability, with protective plastic covers for added style.
• Rear Shock Compatibility: Adjustable for 190mm-240mm travel, allowing for customization to enhance comfort and control.
• Head Tube: Fits a 1.1/8-inch non-integrated steering tube, with a length of 130 mm for stable steering.

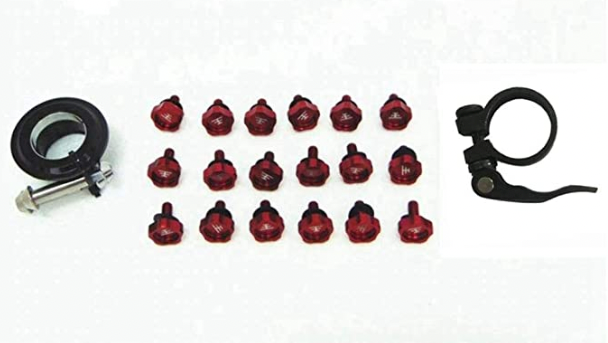

• Seat Post: 31.6 mm diameter with an included clamp for secure seating and easy adjustments.
• Spindle: Square taper design, complete with a sealed bearing bottom bracket for smooth pedaling.

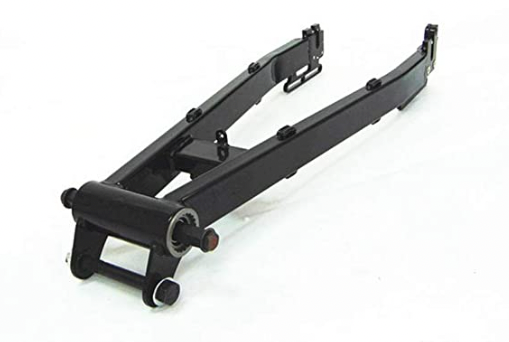

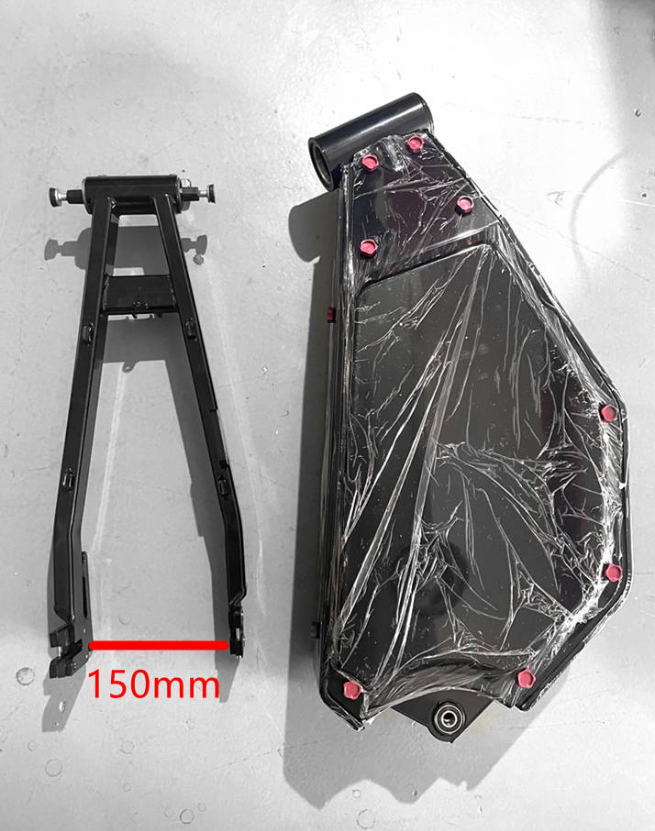

• Swing Arm Dropout Width: Designed for a dropout width of 150-155mm, compatible with various setups.
• Color: Available in a classic black finish.
